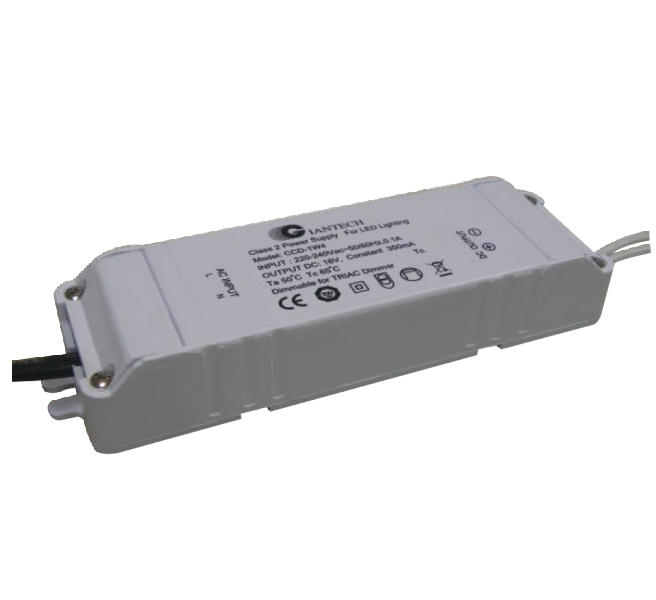

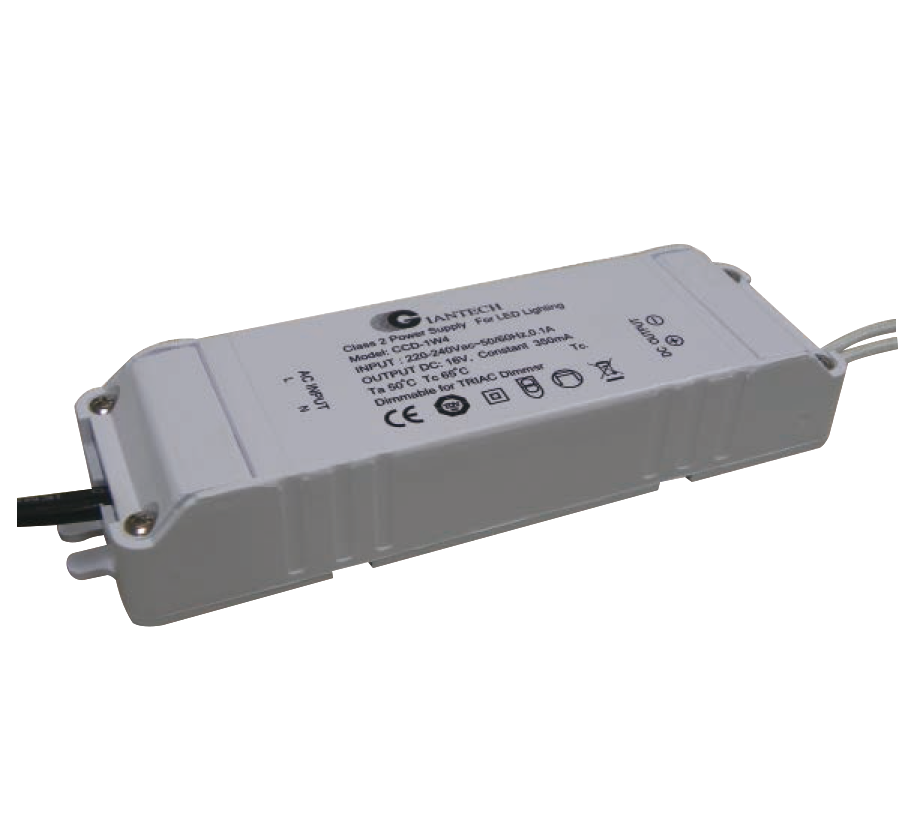

Product Name : ZSCCD-1W4/ZSCCD-1W7/ZSCCD-1W10/ZSCCD-1W12/ZSCCD-3W2/ZSCCD-3W4/ZSCCD-3W6
Product Description
Dimmable LED driver constant current for Triac Dimmer(Leading edge);
Standard: EN 61347-2-13, EN55015
MODEL NO. INPUT OUTPUT CONFIGURATION REMARK
ZSCCD-1W4 220-240Vac
50/60 Hz / 100mA		 16 Vdc
350mA		 BUILT IN Terminal
Block
ZSCCD-1W7 220-240Vac
50/60 Hz / 110mA		 28 Vdc
350mA		 BUILT IN Terminal
Block
ZSCCD-1W10 220-240Vac
50/60 Hz / 130mA		 36 Vdc
350mA		 BUILT IN Terminal
Block
ZSCCD-1W12 220-240Vac
50/60 Hz / 150mA		 45 Vdc
350mA		 BUILT IN Terminal
Block
ZSCCD-3W2 220-240Vac
50/60 Hz / 100mA		 8 Vdc
700mA		 BUILT IN Terminal
Block
ZSCCD-3W4 220-240Vac
50/60 Hz / 130mA		 16 Vdc
700mA		 BUILT IN Terminal
Block
ZSCCD-3W6 220-240Vac
50/60 Hz / 150mA		 24 Vdc
700mA		 BUILT IN Terminal
Block
