ZSLCCE025U112/ZSLCCE025U701/ZSLCCE025U122/ZSLCCE025U801/ZSLCCE025U901/ZSLCCE025U172/ZSLCCE025U801/ZSLCCE025U122
ZSLCCE025U112/ZSLCCE025U701/ZSLCCE025U122/ZSLCCE025U801/ZSLCCE025U901/ZSLCCE025U172/ZSLCCE025U801/ZSLCCE025U122

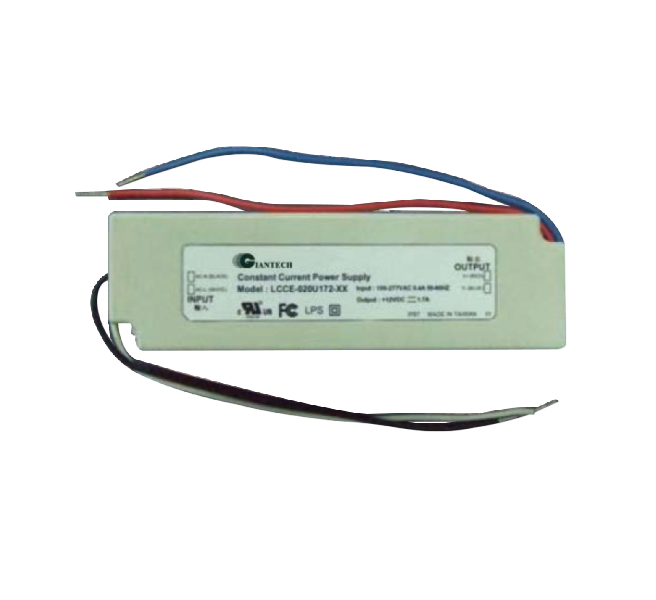

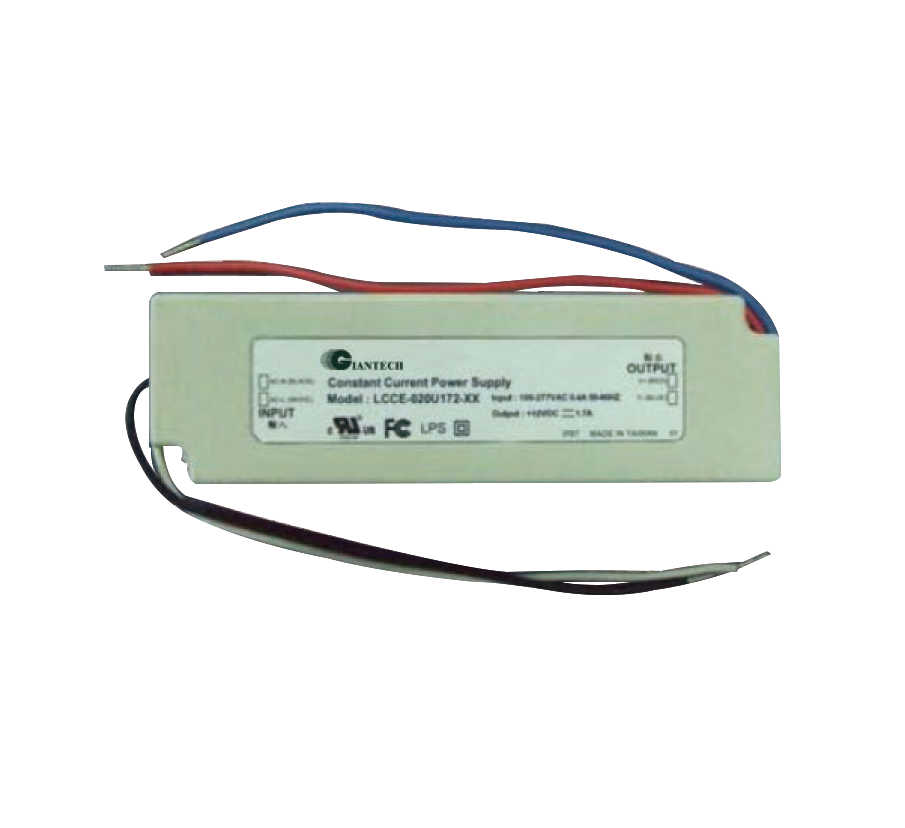

Product Name : ZSLCCE025U112/ZSLCCE025U701/ZSLCCE025U122/ZSLCCE025U801/ZSLCCE025U901/ZSLCCE025U172/ZSLCCE025U801/ZSLCCE025U122
Product Description
Suitable for Hi-Power
LED Lighting Application
Universal AC Input/Full range
DC Output with Constant Current
Compliant with IP67(Waterproof)
MTBF : 30,000 hrs/25°C
High Reliability
Power Factor:>0.95@115VAC/>0.9@230VAC
Electrical Specifications@ 25°C0000
Input
Voltage range
100~277VAC
Frequency range
50/60Hz
Efficiency(Typ.)
80%
AC current
0.4A (Max.)
Inrush current
10A/230VAC cold start
Leakage current
0.7mA/264VAC/60Hz
Function
Protection
Short-circuit/OVP/OTP/Current Limit
Environment
Operating ambient Temp.
-20°C~+60°C
Operating relative Hum.
-10%~+90%
Storage ambient Temp.
-40°C~+80°C
Storage relative Hum.
10%~95%
Others
MTBF
30,000hrs/25°C
Safety & EMC
UL60950-1/ FCC Part18,Subpart C
RoHs
YES
Dimension(mm) LxWxH
134x42x33.1mm
Model No.
DC Output Voltage
DC Output Current
Watt Max.
ZSLCCE025U112
3~24V
1.05A
25.2W
ZSLCCE025U701
3~36V
0.7A
25.2W
ZSLCCE025U122
3~21V
1.2A
25.2W
ZSLCCE025U801
3~30V
0.8A
24.0W
ZSLCCE025U901
3~24V
0.9A
21.6W
ZSLCCE025U172
3~12V
1.7A
20.4W
ZSLCCE025U801
3~24V
0.8A
19.2W
ZSLCCE025U122
3~14V
1.2A
16.8W
