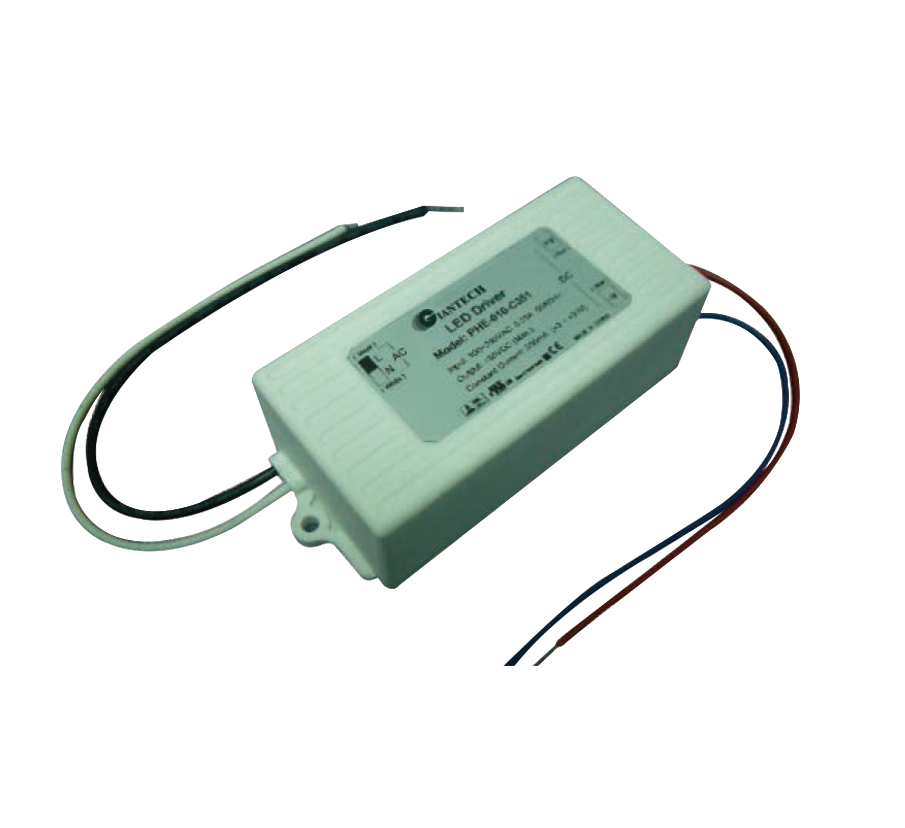

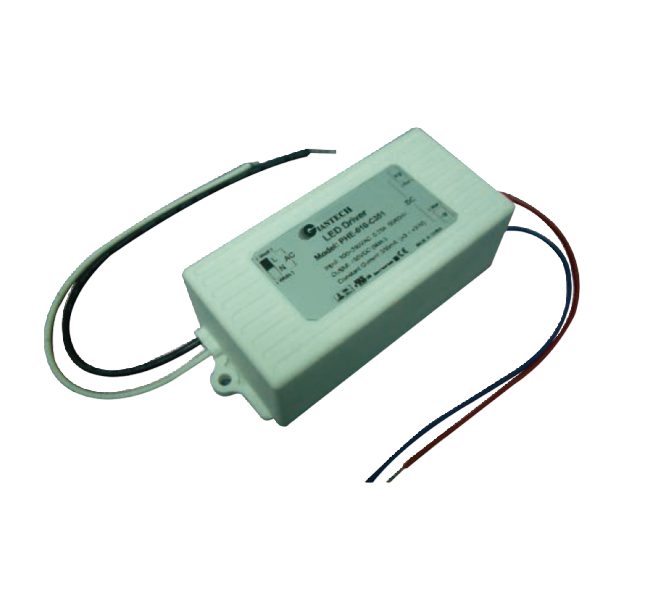

ZSPHE010C201/ZSPHE010C301/ZSPHE010C351/ZSPHE010C401/ZSPHE010C501/ZSPHE010C601/ZSPHE010C701/ZSPHE010C751/ZSPHE010C801
ZSPHE010C201/ZSPHE010C301/ZSPHE010C351/ZSPHE010C401/ZSPHE010C501/ZSPHE010C601/ZSPHE010C701/ZSPHE010C751/ZSPHE010C801
Product Name : ZSPHE010C201/ZSPHE010C301/ZSPHE010C351/ZSPHE010C401/ZSPHE010C501/ZSPHE010C601/ZSPHE010C701/ZSPHE010C751/ZSPHE010C801
Product Description
Suitable for Hi-Power
LED Lighting Application
Universal AC Input/Full range
DC Output with Constant Current
Compliant with IP67(Waterproof)
MTBF : 30,000 hrs/25°C
High Reliability
Electrical Specifications@ 25°C0000
Input
Voltage range
100~240VAC
Frequency range
50/60Hz
Efficiency(Typ.)
56%~80%
AC current
0.25A (Max.)
Inrush current
40A/230VAC cold start
Leakage current
0.7mA/264VAC/50Hz
Function
Protection
Short-circuit/OVP/OTP/Constant Current
Environment
Operating ambient Temp.
-20°C~+60°C
Operating relative Hum.
20%~90%
Storage ambient Temp.
-40°C~+80°C
Storage relative Hum.
10%~95%
Others
MTBF
30,000hrs/25°C
Safety & EMC
UL1310/ EN61347-2-13/CB/CE
RoHs
YES
Dimension(mm) LxWxH
97.5x40x30(with screw hold)
Model No.
DC Output Voltage
DC Output Current
Watt Max.
ZSPHE010C201
3~48V
200mA
9.6W
ZSPHE010C301
3~34V
300mA
10.2W
ZSPHE010C351
3~30V
350mA
10.5W
ZSPHE010C401
3~25V
400mA
10.0W
ZSPHE010C501
3~20V
500mA
10.0W
ZSPHE010C601
3~17V
600mA
10.2W
ZSPHE010C701
3~15V
700mA
10.5W
ZSPHE010C751
3~13V
750mA
9.8W
ZSPHE010C801
3~12V
800mA
9.6W
